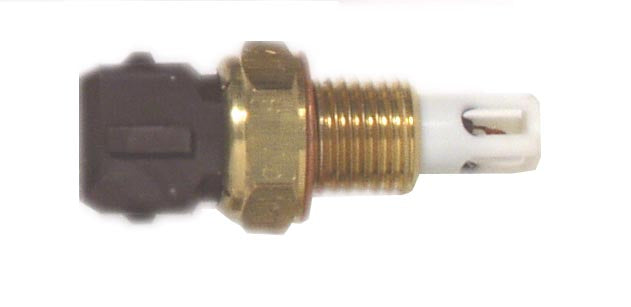

ATS04 Air Temperature Sensor
$67.50 AUD
Sale price
$67.50 AUD
Regular price
Skip to product information
![]()
![]()
ATS04 Air Temperature Sensor
$67.50 AUD
Sale price
$67.50 AUD
Regular price
The ATS04 / 05 / 07 are analogue sensors with a temperature dependant resistor providing a variable resistance across the 2 contacts.
Signal is negative temperature coefficient (NTC). Active device is a thermistor fitted coated leads in a hermetically sealed brass / ABS housing.
Technical Data
Resistance..................................................... 3 kΩ
................................................................@ 25ºC
Accuracy from nominal values .................... 5% (W/ºC)
...................................................@ -40 > +125ºC
Maximum operating voltage ........................... 5 V (series)

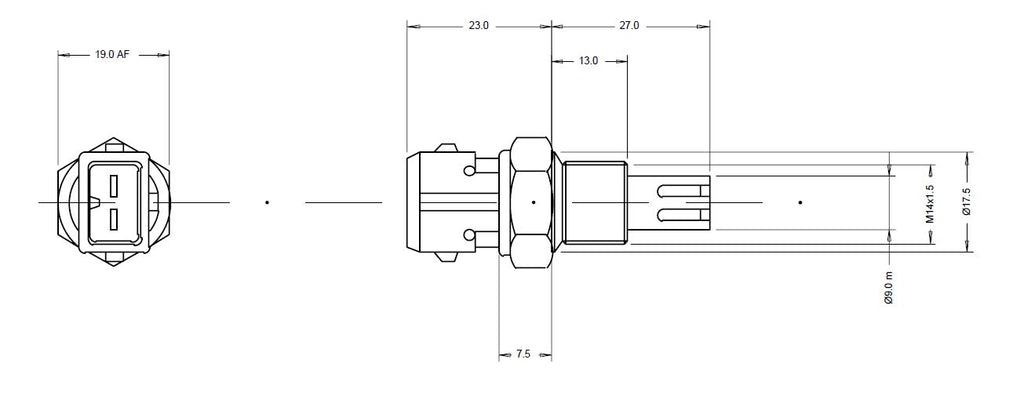

Thread ..............................................M14 x 1.5
Seal ....................................................... 19mm Hex
Weight ......................................................... 26 g
Connector .....................................Mini – Timer 2 way
Max tightening torque 07 / 04....................... 24 Nm
