300 Series MWS Series Three Way W Transitions
MWS304-1-86
$26.50 AUD
Skip to product information

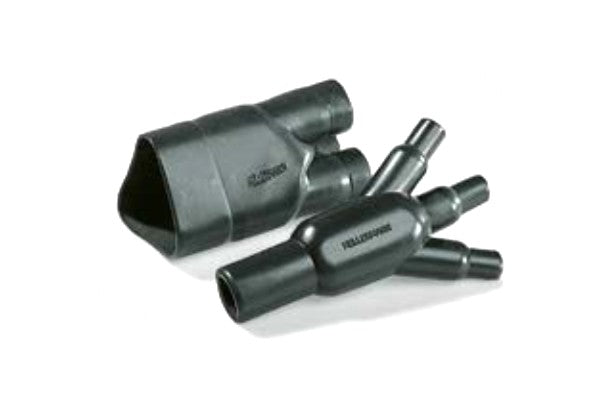

300 Series MWS Series Three Way W Transitions
$26.50 AUD
-
Used for routing multi core branches in three different directions in heatshrunk harnesses
- High expansion ratio for quick and easy installation
- Mechanical tension relief with per applied hot melt adhesive

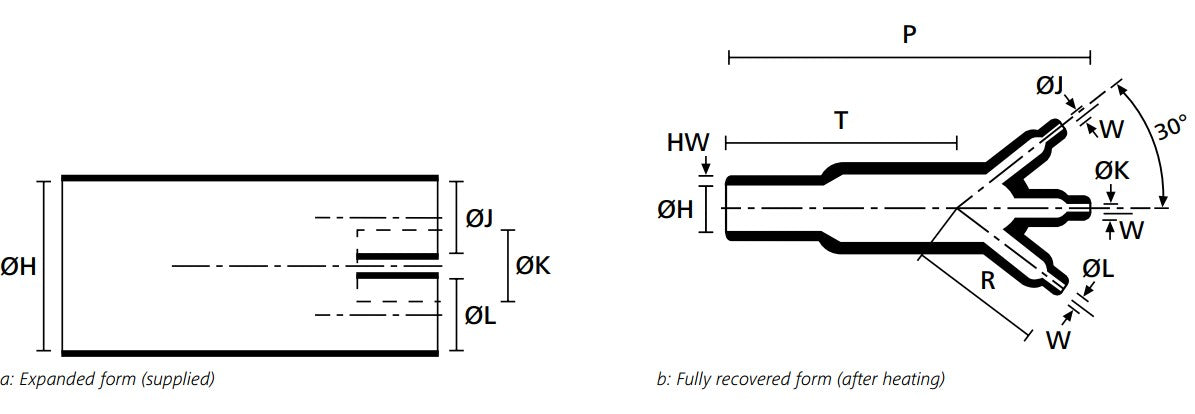

Dimensions
| Part Number | Dimensions | Minimum shrunk dimension | ||||||
| H (mm) | J (mm) | H (mm) | J (mm) | P (mm) | R(mm) | Ht X_Ref | Raychem X_Ref | |
| MWS306-1-86 | 13 | 6.5 | 6.5 | 3.5 | 46 | 25 | 306-1-GW24 | 462A011 |
| MWS304-1-86 | 27 | 13 | 13.5 | 7 | 93 | 50 | 304-1-GW24 | 462A023 |
| MWS310-1-86 | 38.5 | 19 | 19 | 10 | 135 | 73 | 310-1-GW24 | 462A034 |
