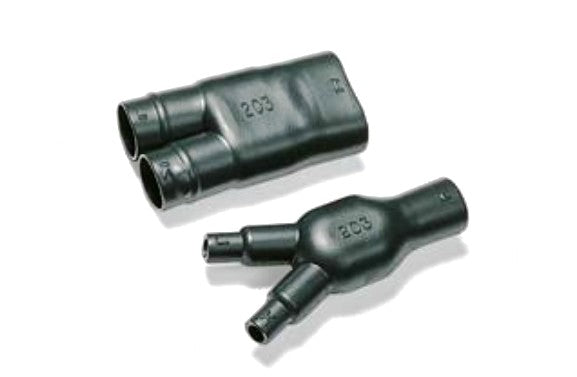

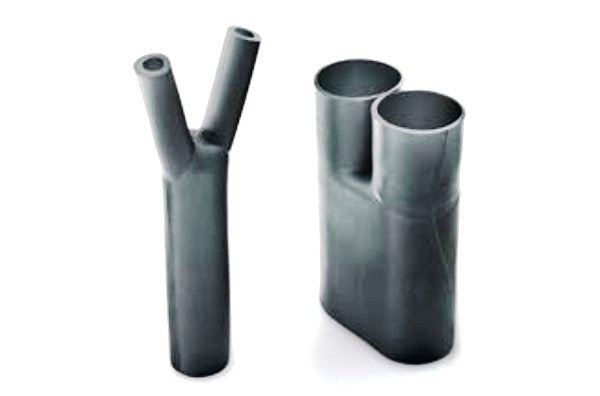

200 Series MYS Two Way Y Transitions
MYS201-3-86
$19.75 AUD
Skip to product information
200 Series MYS Two Way Y Transitions
$19.75 AUD
- Used for routing multi core branches in two different directions in heatshrunk harnesses
- High expansion ratio for quick and easy installation
- Mechanical tension relief with per applied hot melt adhesive

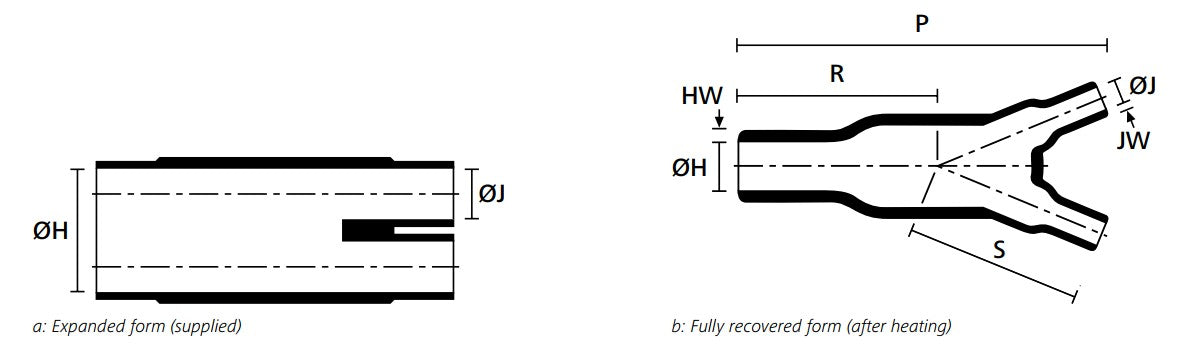

Dimensions
| Part Number | Dimensions | Minimum shrunk dimension | ||||||
| H (mm) | J (mm) | H (mm) | J (mm) | P (mm) | R(mm) | Ht X_Ref | Raychem X_Ref | |
| MYS201-3-86 | 24.5 | 14 | 9.4 | 6.4 | 51 | 30.5 | 201-3-GW24 | |
| MYS203-1-86 | 27 | 13 | 12 | 6 | 80 | 43 | 203-1-GW24 | 382A023 |
| MYS204-1-86 | 39 | 27 | 18 | 12 | 81 | 66 | 204-1-GW24 | 382A034 |
| MYS206-1-86 | 13 | 7 | 6 | 3 | 41 | 19 | 206-1-GW24 | 382A012 |
