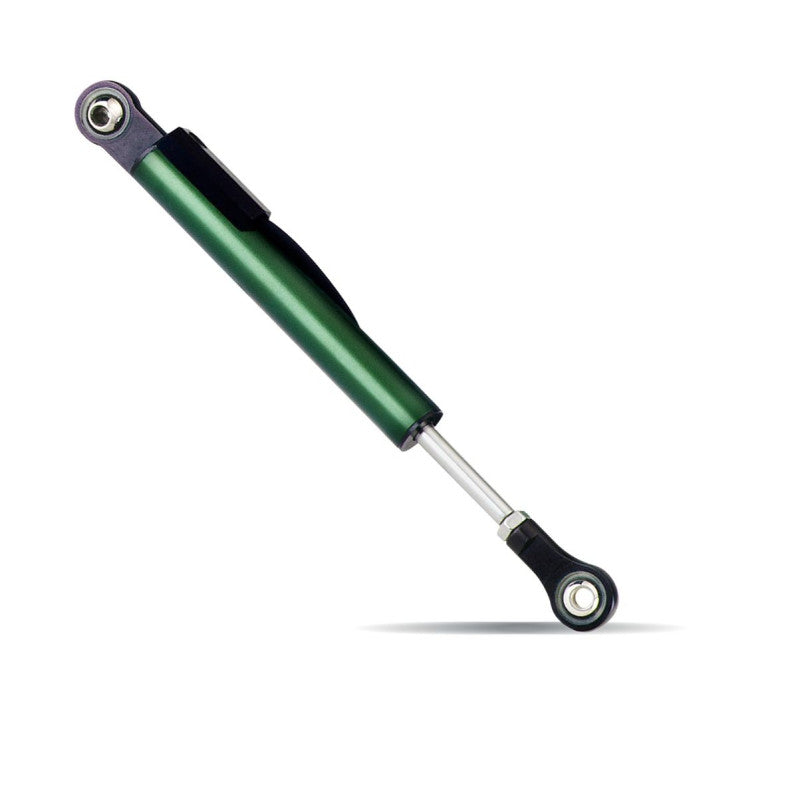

Variohm ELPM75 Linear Potentiometer

Features

• Extremely robust and compact specifically for Motorsports
• Aluminium housing sealed to IP67
• Elastomer damped wipers for shock and vibration durability
• Self-aligning pivot bearing mountings with optional snap-onversion for quick installation/removal
• Extended 'S' sealing option for enhanced reliability and longer life
• Wide choice of connector options on request (Autosport/DTM/LEMO, etc)

Technical Details

• Mechanical Life > 25 million
• Operational Speed 10 m/s Max
• Environmental Sealing IP65
• Temperature Range –30°C to +100°C
• Independent Linearity +/–0.5%
• Recommended Wiper Current: < 10μA
• Cable Type 24AWG M22759/32 wire, with FDR25 sleeve
• Cable Length 500mm (SCREENED)

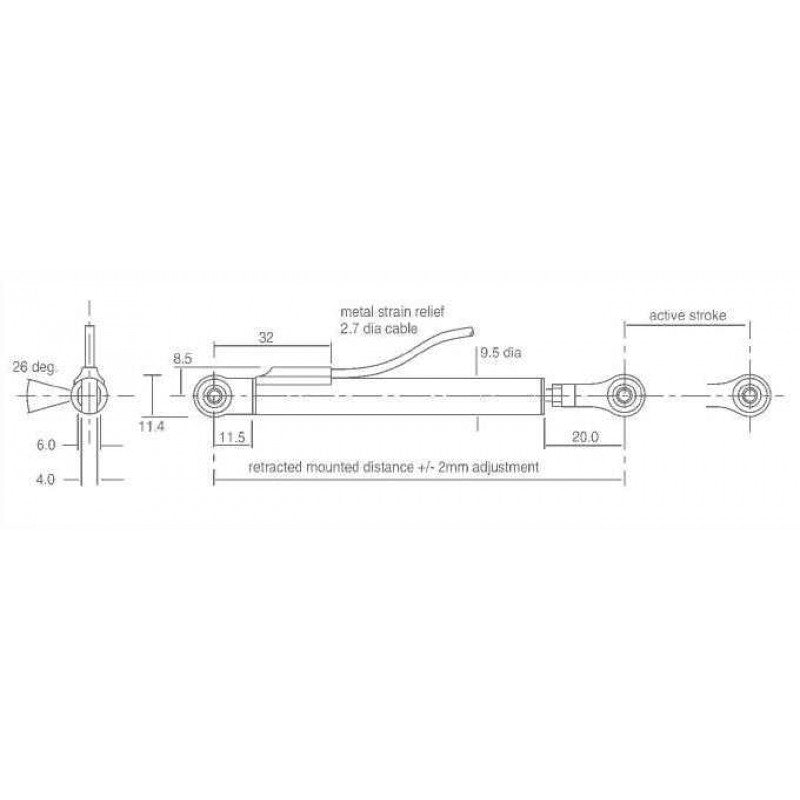

• Retracted mounting distance 145mm
  • Electrical stroke 75mm
• Track Type Conductive Plastic
