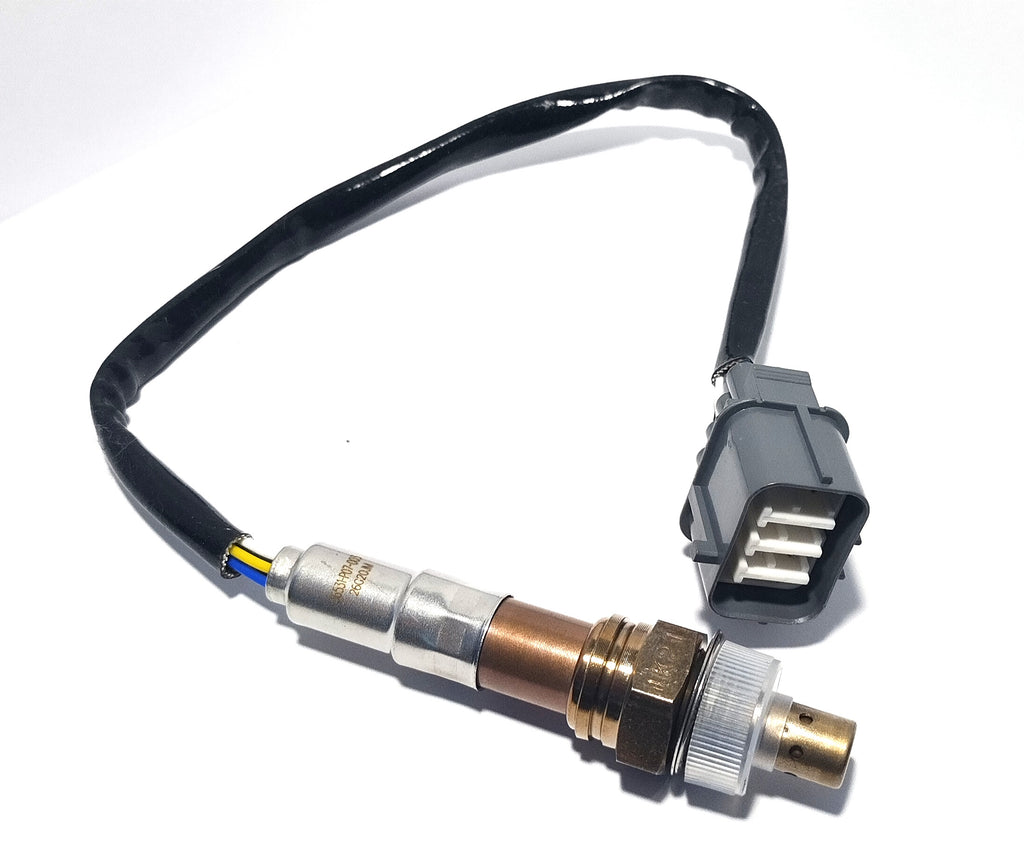

NTK UEGO Wideband Lambda Sensor 60-608A

Wideband L2H2 UEGO lambda sensor for accurate air fuel ratio monitoring. Interfaces directly with EFI Technology and Magneti Marelli engine control units as well as many other aftermarket lambda modules.

The amplifier modules utilize the inbuilt calibration resistor that the NGK lambda’s are set with at the factory, therefore guaranteeing accurate performance for the life of the sensor.

CAUTION! This sensor is designed for use with lead free fuels only. Prolonged exposure to leaded fuels will result in a life of less than 50 hours.

Also available in a Pro spec version with a Souriau Autosport connector and DR150 heat shrink for improved reliability. This is the sensor used on our SBK electronic systems.

Operating parameters

• Sensor element operating temp 750-850C
• Max. Tip Temperature 950C
• Connector temp 120C
• Weight 100gr
• Tightening Torque 40Nm

Electrical Data

• Heater Voltage 10.5-14V
• Heater current 1.8A

Connection details
