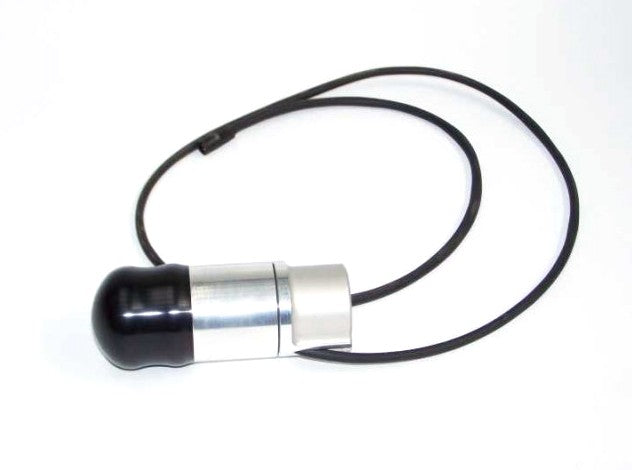

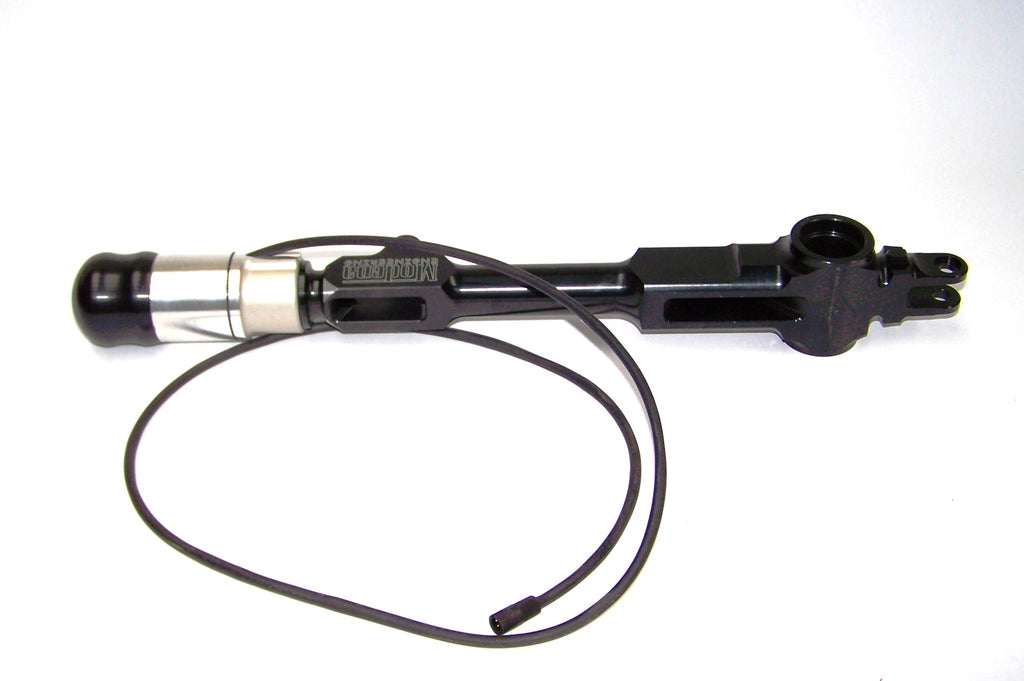

Compsystems Strain Gauge Gear Knob

Compsystems Strain Gauge Gear Knob

$975.00 AUD

 *With an inbuilt bi-directional load cell, this gear knob can sense force in both a fore and aft plane, making it ideal for upshift cuts and downshift blips in sequential shift transmissions used in motorsport.

The lower housing comes with a 12mm pilot hole for drilling and tapping out to sizes up to M24.

Technical Details

  • Supply Voltage 5V DC regulated
  • Centre voltage (no force) 2500mv
  • Output voltage at +3kg force   4000-4100mv *
  • Output voltage at -3kg force    1000-1100mv *

* More accurate calibrations are provided with each gear knob.
