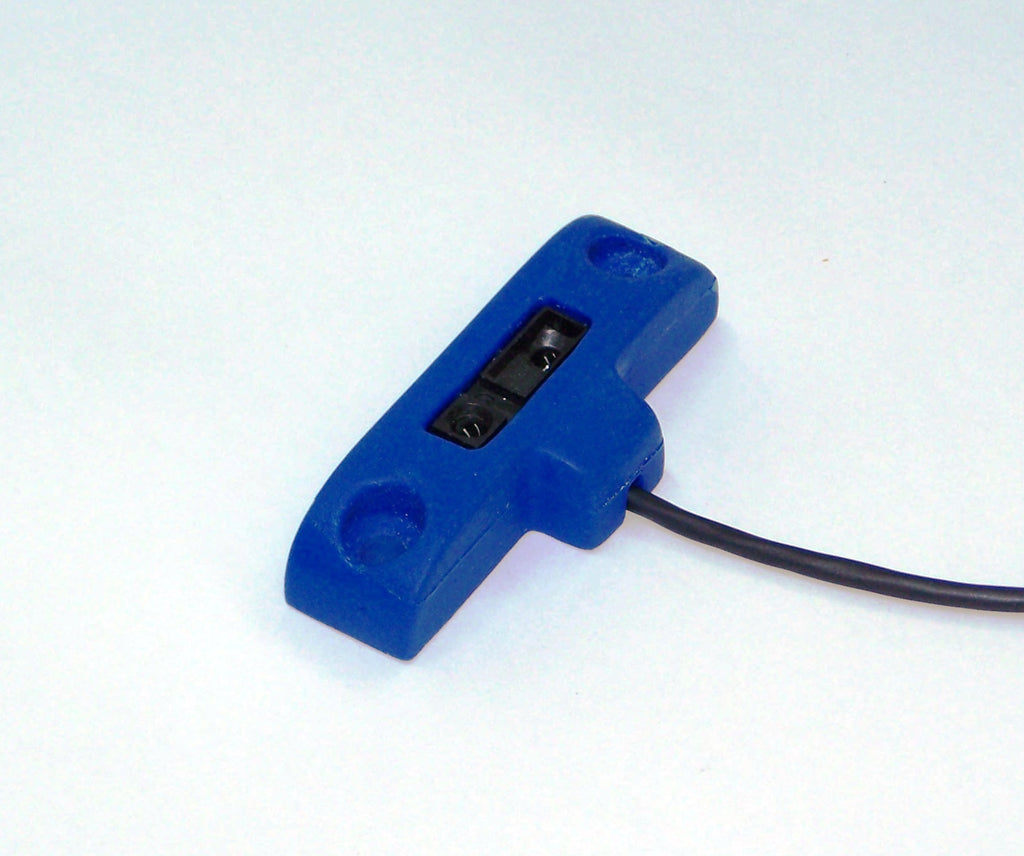

Compsystems Infra Red Ride Height Sensors

A non contact ride height sensor which works by bouncing infra red signals off the road surface and measuring the returned signal. From this, the sensor outputs a 0-5V signal comparative to the distance in a range of 40mm to 300mm.

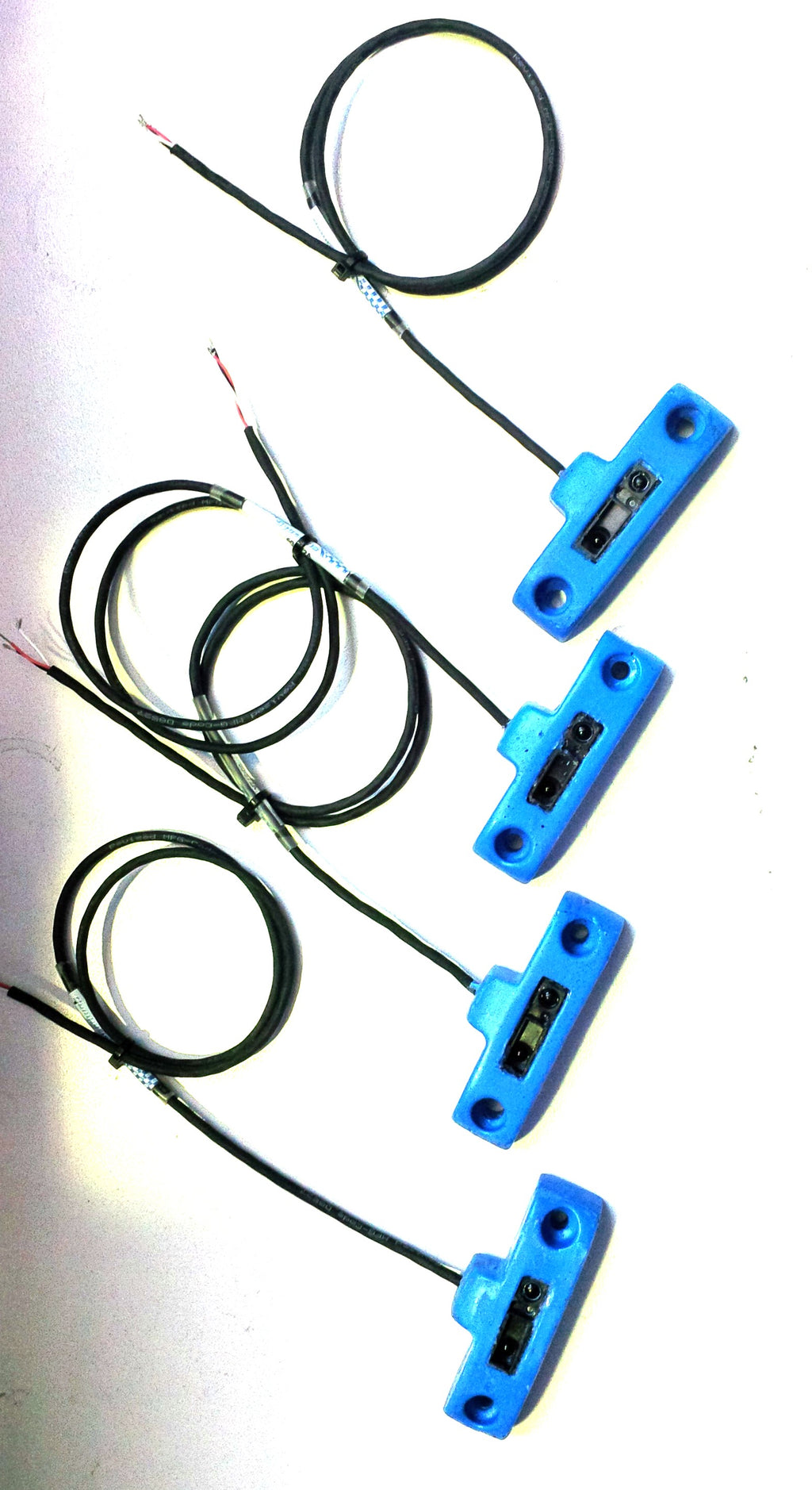

When mounted at each corner of the car, true vehicle chassis position can be measured as well as additional tyre information.

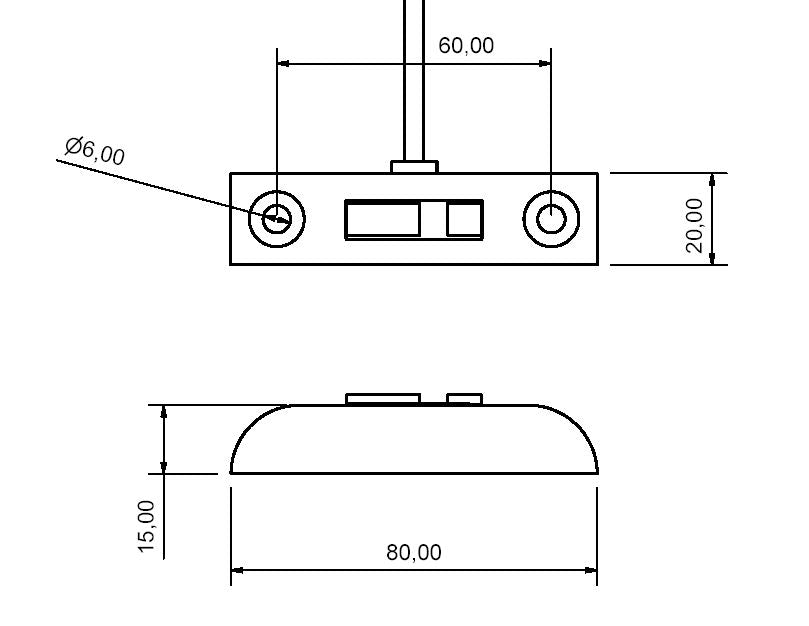

The sensor comes in a tough, polyurethane housing with Raychem-sleeved cable and a Amphenol ATM 3 pin connector for high reliability.

Features

• Measurement distance..........30-150mm
• Supply Voltage....................5V
• Max refresh rate..................25Hz
• Tough polycarbonate housing sealed
• Supplied with calibration sheet

Connector

ATM04-3PSR01BLK (Equi. DTM04-3P)
