E-Type and a Heritage upgrade

Jaguar Heritage Throttle Body EFI retrofitThis magnificent black Jaguar E-Type had laready been converted to EFI many years ago with some quality gear. But the owner wanted a more authientc look, so a Heritage conversion was called for.

 I've always had a soft spot for E-Types. The really defined the look of the long bonnet British roadster and actually drive pretty well for a car that's half a century old. This one is a later 4.2L that had been converted to EFI some years ago. The original install was quite good with a Motec M8 ECU and the wiring hadn't even degraded that much, only needing some detailed tidying up.It generally drove quite nicely and seemd to have all of that great smooth torque that Jag sixes are reknowned for.

The problem for the owner was mostly aesthetic. When you lifted the bonnet it didn't look so 1960's anymore. The EFI conversion was looking a little worse for wear, especially the fibreglass airbox that had degraded drastically over time. The injectors were old green top EV1 Bosch injectors and the distributor was thankfully a custom EFI job, very similar to our own Classic Throttle distributor design.

100 2672

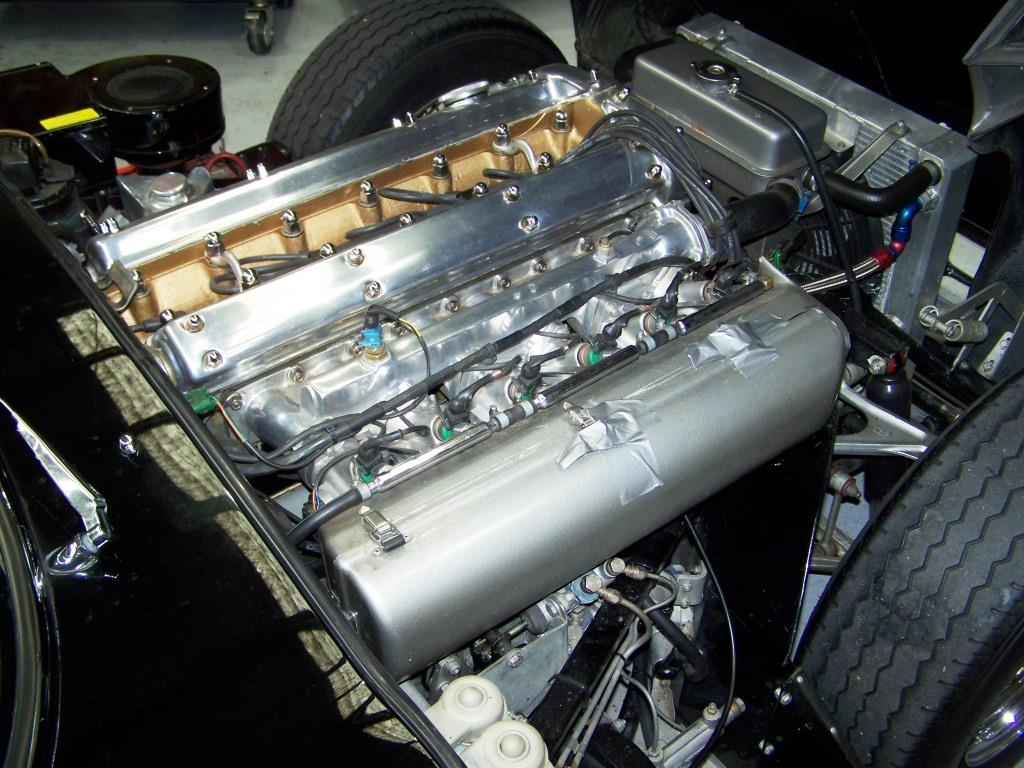

The existing EFI system complete with duct tape holding the airbox togethor.

The answer was a triple set of 45mm Heritage throttle bodies from Jenvey. Complete with Bosch EV14 injectors and a non-contact throttle position sensor mounted integrally in the central throttle body, there wasn't much else to do except for the wiring tidy up and some fuel plumbing. We had warned the owner that there probably wasn't going to be much of an increase in performance but we could promise it would look a lot more authentic. We were wrong on the first count and right on the second.

Jenvey Jaguar Heritage Conversion

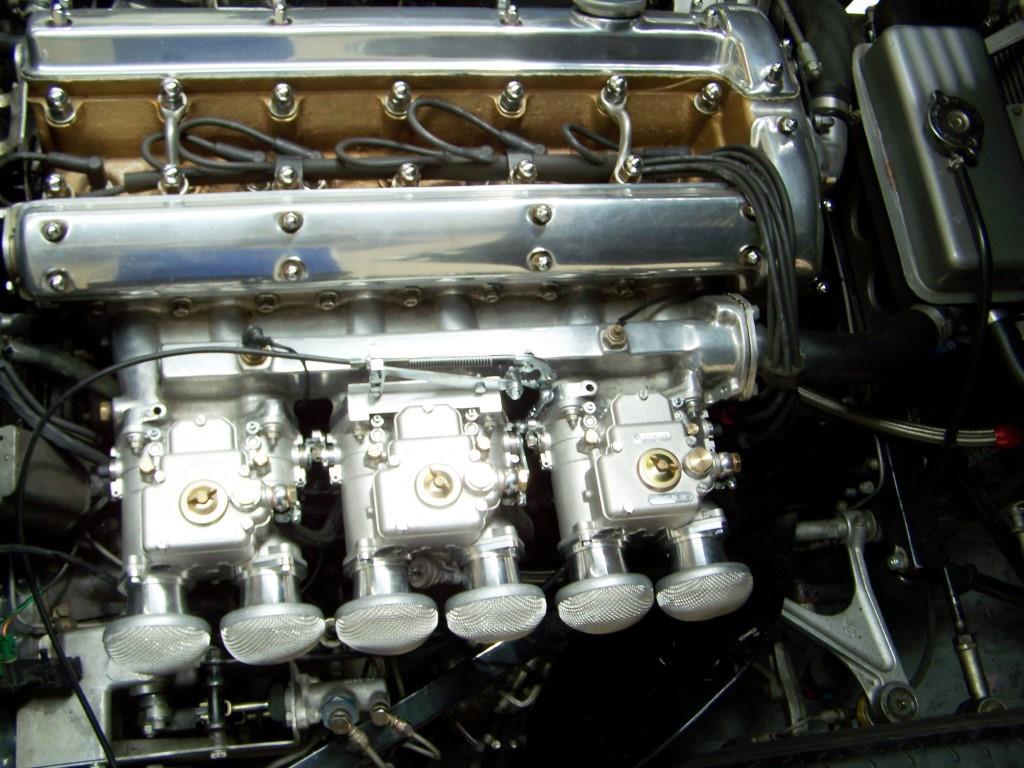

Triple TD45 Heritage throttle bodies with mesh style air filters for extra authenticity

The installation was typically easy as it always is with Jenvey products. The bolt and port alignment were spot on with no brackets fouling anywhere. The linkage was a bit of a hea scratcher at first as the E-Type bonnet is notoriously low and the Heritage linkage kit sat too high. We ended up using a CLS2-TB01 kit which is normally what we'd use on the normal TB/TH series DCOE throttles. We also machined  anew fuel distributor block so we could use the side entry fuel fittings in the traditional manner.

100 2690 doc

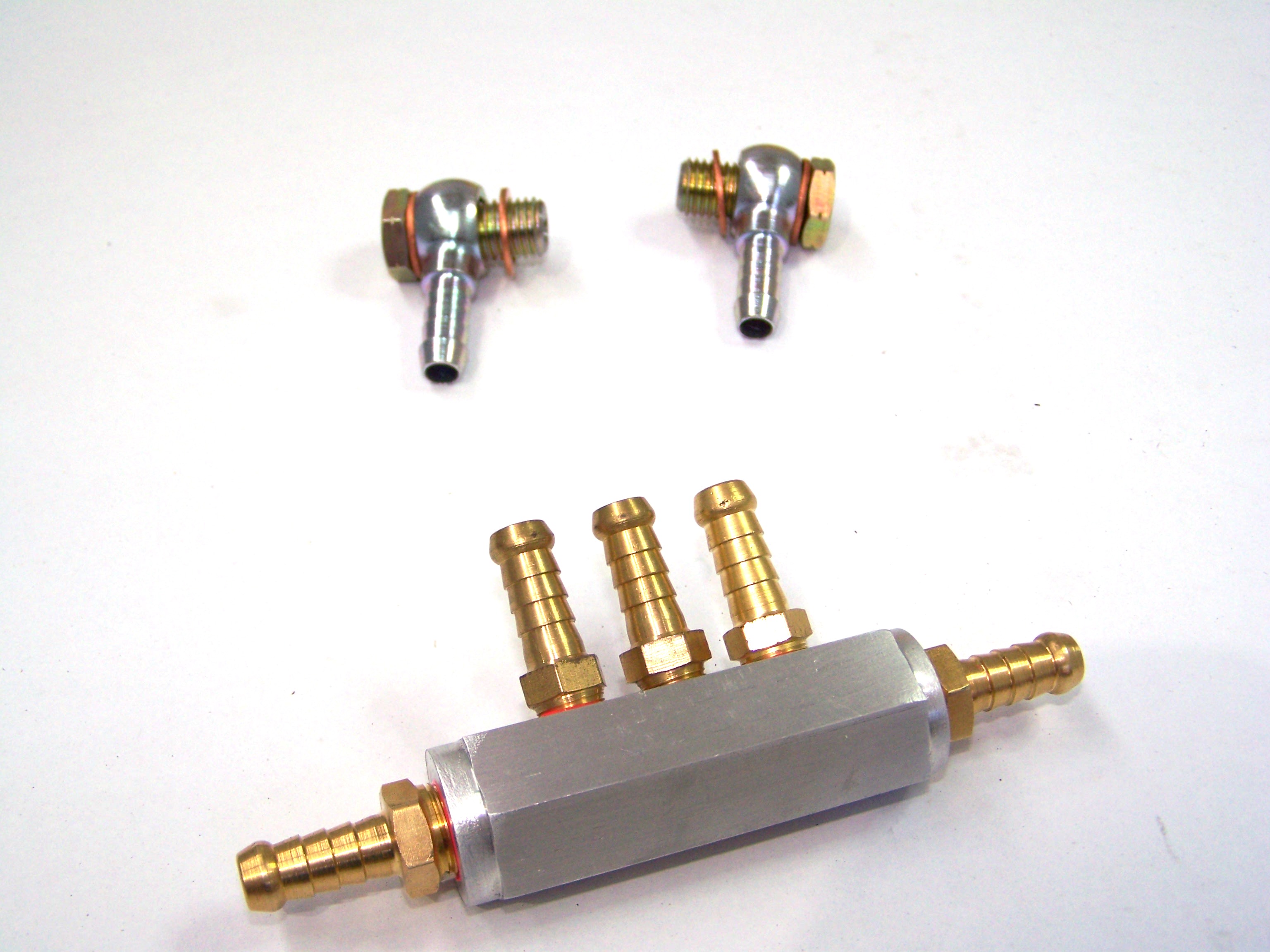

Fuel distributor block with TBR41 side entry fittings

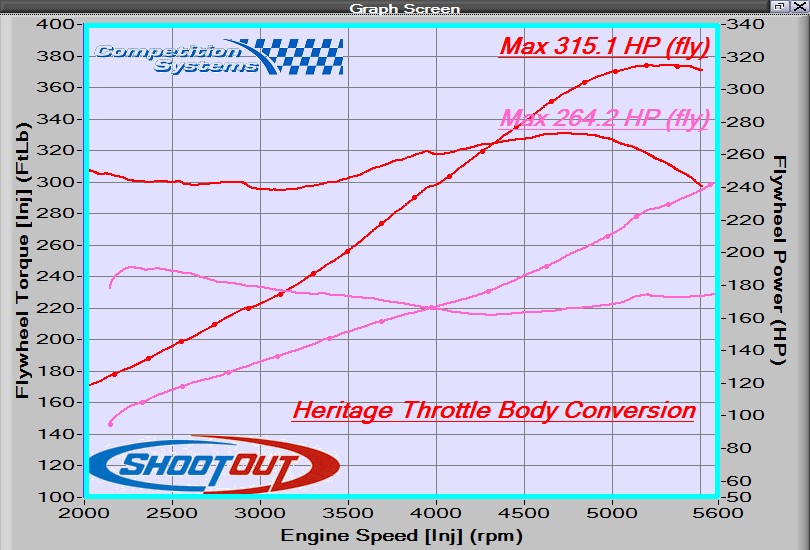

Even I was shocked at the increase in mid range torque and the extra power up top was an even bigger surprise. The mid range boost I could write off to a much improved Bosch EV14 and it's better spray pattern but the extra 50HP at the top? And the final dyno run in the graph below included the air filters. The difference was less than 2HP between having them or not having them mounted.

The road manners were even better with excellent starting and driving characteristics, including a cold start at the top of Mt Buller on a minus something degree morning.

BlackJag Heritage beforeafter



Ordering Details

Jaguar 3.8L / 4.2L Heritage Throttle Body Kit

Product Code: CKJR05-TD-KIT
Weight: 8.00kg
Dimensions: 50.00cm x 40.00cm x 30.00cm

Price: $13,200.00

The Jenvey Jaguar straight 6 manifold has been designed to suit both the series 1 3.8L & 4.2L engines and the series 2 4.2L engine.

The Water manifold suits the series 1 4.2L thermostat housing and thermostat, and includes a heater outlet.

The TD and TH kit include manifold, throttle bodies, fuel rail, air horns and linkages.

This manifold has been designed to suit our DCOE Heritage and standard throttle bodies.

The manifold includes underneath take off for ECU water temp, dashboard water temp & spare undrilled water feature boss.

The throttle body kit includes manifold and water pipe, throttle bodies, linkages, air horns and fuel rails.

  • Jenvey Heritage Series 45mm Throttle bodies
  • Bosch EV14 fuel injectors (mounted internally)
  • Long life non-contact throttle position sensor
  • 40mm long spun alloy air horns
  • stainless steel mesh dome filters
  • banjo fuel fittings
  • fuel rail adaptor - triple outlet
  • Linkage kit

Jaguar XK 6 Heritage Throttle Body Kit

Brand: Jenvey
Product Code: CKJR05TD
Weight: 10.00kg
Dimensions: 60.00cm x 30.00cm x 40.00cm

Price: $6,475.00

The Jenvey Jaguar straight 6 manifold has been designed to suit both the series 1 3.8L & 4.2L engines and the series 2 4.2L engine.

The Water manifold suits the series 1 4.2L thermostat housing and thermostat, and includes a heater outlet.

The TD and TH kit include manifold, throttle bodies, fuel rail, air horns and linkages.

This manifold has been designed to suit our DCOE Heritage and standard throttle bodies.

The manifold includes underneath take off for ECU water temp, dashboard water temp & spare undrilled water feature boss.

The throttle body kit includes manifold and water pipe, throttle bodies, linkages, air horns and fuel rails.

Emtron SL6 Motorsport ECU

Product Code: EMSL6
Weight: 0.50kg
Dimensions: 25.00cm x 20.00cm x 5.00cm

Price: $2,299.00

Emtron’s SL6 is a wire in ECU with extreme flexibility. This ECU will support up to 6 Channels of fully sequential Fuel and Ignition.  Every unit is housed in a durable billet Aluminium enclosure and includes 32MB permanent memory for on-board logging, 4-channel oscilloscope function, DBW control, Knock control up to 2 channels using digital filter technology, high speed Ethernet communications and 3-axis G-force sensing to name a few.

Power Supply

  • Operating Voltage: 6.0 to 22.0 Volts DC (ECU shutdowns at 24.0V)
  • Operating Current: 290mA at 14.0V (excluding sensor and load currents)
  • Reverse Battery Protection via External Fuse
  • “Smart” battery transient protection

Operating Temperature

  • Max operating range: -30 to 110°C (-22 to 230°F)
  • Recommended operating range: -30 to 85°C (-22 to 185°F)

Physical

  • Aluminium 6061 grade CNC billet enclosure
  • Enclosure size 120 mm x 130 mm x 27 mm
  • Weight: 470g
  • Connector system: 68-way Super Seal waterproof connectors with gold plated contacts
  • Pin diameter: 1 mm
  • Current rating: maximum 15A per pin (wire gauge dependant)

Internal

  • Dual 100MHz processors
  • 500Mb DDR RAM (0.5Gb)
  • 32MB ECU logging memory.  Over 1200 channels available, 1Hz to 500Hz logging rate
  • Oscilloscope 4-channel function with 32MB storage
    • Sampling at 100k samples/second
    • Includes Crank Index and Sync sensor inputs
    • Includes Digital Inputs 1-4
  • On-Board barometric pressure sensor. Range 40 – 115.0 kPa
  • 3-Axis accelerometer. 16-Bit resolution,  +2g/+4g/+8g dynamically selectable full-scale

6x Port Injector Outputs—high  ohm

  • 70V clamping
  • Outputs can be used for ground switching, 6A Continuous, 10A Limit
  • All outputs are short circuit and over current protected
  • No Flywheel diodes (external diode(s) required for VVT control)

6x Ignition Outputs

  • Adjustable TTL Ignition drive current (35mA or 70mA)
  • Outputs can be used for ground switching, 1A Continuous, 3A Limit
  • All outputs are short circuit and over current protected
  • No Flywheel diodes (external diode(s) required for VVT control)

10x Auxiliary Outputs

  • Variable Valve Timing (VVT) and Variable Valve Timing Electric (VTiE), Drive by Wire (DBW), dual boost control, gearshift solenoids, stepper motor and many more.
  • All outputs have PWM control, maximum frequency = 15 kHz
  • Flywheel diodes integrated into all outputs
  • All outputs are short circuit and over current protected.
  • Low Side Driver Auxiliary 1-4: 4A continuous, 6A peak modulated, 8A limit
  • Low Side Driver Auxiliary 5-8: 2.5A continuous, 4A peak modulated, 5A limit
  • High Side Driver Auxiliary 1-8: High Side 4A continuous, 9A limit
  • Half Bridge Driver Auxiliary 9-10: 5A continuous and 8A limit. Can be used as Low Side, High Side or together in H-bridge configuration for DC motor control (DBW)

1x EFI Relay Output

  • Low Side Driver for relay control. Current limited to 200mA (Output will switch ON when Ignition Switch Input (B4) is greater than 4V)

1x Shield Output

  • Connection for Trigger and Knock shielded cables. Short to battery protection

10x Analog Voltage/Temperature Inputs

  • Fully configurable including custom calibrations
  • Switchable 1k ohm pull-up resistors on ANV 7-10 for temperature inputs (available on 4 channels)
  • Accepts a 0.0 – 5.0V analog input. Resolution is 1.22mV (12-Bit)

6x Digital/Speed Inputs/Switched Inputs

  • Frequency range from 0.0Hz up the 30.0kHz on all 8 channels
  • Magnetic and Hall effect sensor compatible on DI 1-4 with programable trigger edge(s)
  • Hall effect sensor only on DI 5-8 with programable trigger edge(s)
  • Independent programable frequency-based arming threshold control, range 0.0 – 12.0V on DI 1-4
  • Fixed frequency-based arming thresholds on DI 5-8. Rising = 1.2V, Falling = 1.0V.
  • Wheel speed, output shaft speed and other frequency-based signals
  • VVT position(s) up to 4 channels available on DI 1- 4.
  • ON/OFF switched inputs: AC request, Launch enable, cruise switch, table control switching etc with arming threshold control, range 0.0 -20.0V
  • Accepts a 0.0 – 20.0V analog input. Resolution is 4.88mV (10-Bit)
  • Switchable 4k7 ohm pull-up resistors on all 8 channels to 10V

2x Knock Inputs with configurable Frequency and Gain.

  • Using Bosch digital knock integrated circuit technology
  • Selectable center frequency from 500Hz – 25kHz
  • Selectable bandwidth from 100Hz – 5kHz
  • Selectable digital filter window; Hamming or Blackman

1x Dedicated Ignition Switch Input

  • 0 – 20.0V input used for EFI Relay Control. (With input > 4V the EFI Relay output (D9) will switch ON)

2x Crank Index and Sync Engine Decoding Inputs

  • Magnetic and Hall effect sensor compatible with programable trigger edge(s)
  • “True” zero crossing detection on magnetic signals for precise engine position decoding.
  • Programmable independent arming threshold control from 0.1V to 12.0V
  • Switchable 4k7 ohm pull-up resistor to 5V
  • OEM patterns supported

1x ECU Supply Input

  • 15.0A Max (pin limited)
  • 6V – 22.0V Range
  • Supplies ECU power
  • Supplies power to Auxiliary 1-8 High Side Drivers

1x Auxiliary 9-10 Supply Input

  • 15.0A Max (pin limited)
  • Power supply for Auxiliary channels 9 -10.

1x 5.0V Sensor Supply

  • 5.0V Vref1 output current 250mA

 1x 8.0V Sensor Supply

  • Output current 400mA

2x ECU Main Grounds

  • 15.0A per pin, total 30A

1x Sensor 0V Reference

  • Analog Sensor 0V Reference with short to battery protection
  • 1x high speed Ethernet 100Mbps
  • 2x CAN 2.0B 1Mbps/ 6 Channels per node, total 128 messages.

Emtron’s comprehensive Emtune tuning software is used to connect to the ECU.

  • Microsoft Windows 7 -10 compatible
  • Free licence
  • Memory requirements: 0.5GB RAM
  • ECU connection using Ethernet, IPV4 protocol
  • Tuning and data analysis
  • PC and ECU data logging
  • Live pause and data playback
  • Advanced tuning functions
  • Diagnostics
  • Oscilloscope display


Competition Systems - Jaguar XK6 EFI Distributor

Product Code: 120-119A

Price: $675.00

EFI retrofit distributor that is the perfect companion for our Heritage DCOE throttle bodies. Allows fully sequential ignition and injection control on Jaguar XKE engine as found in many models including the E-Type and XJ6.
